Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
Toepassing: | Huis, Woonplaats, Supermarkt, Winkelcomplex | Capaciteit: | 60000 BTU |
---|---|---|---|
Controle: | Remote Control | Functie: | Slechts het koelen, Het koelen & het verwarmen |
Gas: | R410A | Power: | 2TON, 220V, 60HZ |
Power Source: | elektrisch | Naam van het product: | Plafond Opgezette Airconditioner |
Type: | Plafondvloer | spanning: | 220V, 60HZ |
Markeren: | Huisairconditioning,de muur zet airconditioner op |
R410A 2TON 60000 BTU Plafond het Opgezette Airconditioner Koelen slechts met Sencamer
Snel Detail:
De het commerciële Plafond en Vloer van de typeAirconditioner
Specificaties

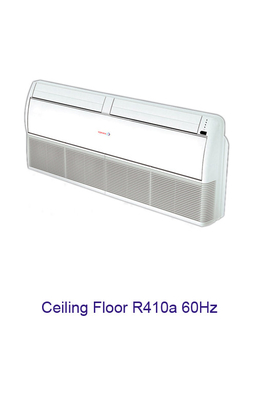

BINNENeenheid
Model |
Yue-60CRN1 |
||
Code |
220044701690 |
||
Voeding |
V-ph-Herz |
220-1-60 |
|
Het koelen |
Capaciteit |
Btu/h |
60000 |
Input |
W |
6869 |
|
EER |
W/W |
2.56 |
|
Het verwarmen |
Capaciteit |
Btu/h |
/ |
Input |
W |
/ |
|
COP |
W/W |
/ |
|
Binnenventilatormotor |
Model |
|
YSK85-4B |
Qty |
|
2 |
|
Input |
W |
174/157/144 |
|
Condensator |
uF |
2.5UF/450V |
|
Snelheid (Hi/Med/Lo) |
r/min |
1400/1220/1090 |
|
Binnenrol |
Aantal rijen |
|
3 |
Van de buishoogte (a) x de rijhoogte (B) |
mm |
21x13.37 |
|
Vin het uit elkaar plaatsen |
mm |
1.3 |
|
Vintype |
|
Hydrofiel aluminium |
|
Buis buiten dia.and-type |
mm |
Φ7, binnen gegroefte buis |
|
Rollengte x hoogte x breedte |
mm |
1300x294x40.11 |
|
Aantal kringen |
|
8 |
|
Binnenluchtstroom (Hi/Med/Lo) |
m3 /h |
2300/1900/1700 |
|
Binnengeluidsniveau (geluidsdruk) (Hi/Med/Lo) |
dB (A) |
56/52/48 |
|
Gaspedaaltype |
|
Gaspedaalklep |
|
Binneneenheid |
Afmeting (WxDxH) |
mm |
1650x675x235 |
Verpakking (WxDxH) |
mm |
1725x755x313 |
|
Netto/Brutogewicht |
kg |
39/45 |
|
Ontwerpdruk |
MPa |
4.2/1.5 |
|
De diameter van de drainagewaterpijp |
mm |
ODΦ25 |
|
Koelmiddel het door buizen leiden |
Vloeibare kant/Gaskant |
mm (duim) |
Φ9.52/Φ19 (3/8“ /3/4“) |
Controlemechanisme |
|
RG51Q1/BGE |
|
Verrichtingstemperatuur |
Het koelen |
℃ |
17~32 |
Het verwarmen |
℃ |
/ |
OPENLUCHTeenheid
Verkoopmodel |
Yov-60cn1-n |
||
Voeding |
V-Ph-Herz |
220~1-60 |
|
Max. inputconsumptie |
W |
7625 |
|
Max. stroom |
A |
34.6 |
|
Compressor |
Model |
|
C-SBP160H16A |
Type |
|
Rol |
|
Merk |
|
Sanyo |
|
Capaciteit |
Btu/h |
53910 |
|
Input |
W |
5650 |
|
Geschatte stroom (RLA) |
A |
25.8 |
|
Gesloten rotorampère (LRA) |
A |
139 |
|
Thermische beschermerpositie |
|
Intern |
|
Condensator |
uF |
60uF/450V |
|
Koelmiddelenolie |
ml |
1400 |
|
Openluchtventilatormotor |
Model |
|
YDK230-6F-1 (B) |
Qty |
|
1 |
|
Input |
W |
310 |
|
Condensator |
uF |
12μF/450V |
|
Snelheid |
r/min |
1095 |
|
Openluchtrol |
Aantal rijen |
|
1 |
Van de buishoogte (a) x de rijhoogte (B) |
mm |
21x13.37 |
|
Vin het uit elkaar plaatsen |
mm |
1.3 |
|
Vintype |
|
Unhydrophilicaluminium |
|
Buis buiten dia.and-type |
mm |
Ф7, binnen gegroefte buis |
|
Rollengte x hoogte x breedte |
mm |
2028x798x13.37 |
|
Aantal kringen |
|
5 |
|
Openluchtluchtstroom |
m3 /h |
7400 |
|
Openluchtgeluidsniveau (geluidsdruk) |
dB (A) |
64 |
|
Gaspedaaltype |
|
/ |
|
Openluchteenheid |
Afmeting (WxDxH) |
mm |
710x710x843 |
Verpakking (WxDxH) |
mm |
738x738x872 |
|
Netto/Brutogewicht |
kg |
80/85 |
|
Koelmiddel |
Type |
|
R410A |
Geladen volume |
kg |
2.2 |
|
Ontwerpdruk |
MPa |
4.2/1.5 |
|
Koelmiddel het door buizen leiden |
Vloeibare zijgaskant |
mm |
Φ9.52/Φ19 (3/8“ /3/4“) |
Max. lengte van de koelmiddelenpijp |
m |
50 |
|
Max. verschil in niveau |
m |
25 |
|
Omgevingstemperatuur |
Het koelen |
℃ |
18~43 |
Het verwarmen |
℃ |
|
Toepassingen:
Huis of woonplaats, bureau, openbare ruimte met inbegrip van supermarkt, winkelcomplex….
Concurrentievoordeel:
hoog rendement,
hoog - kwaliteit,
De Compressor van SANYO,
lage omringende Zelfdiagnose en auto-beschermingsfunctie
